Din Rail

Discover IBOCO Drin Rail series, the most comprehensive din metal mounting rail range available in the marketplace.

Din rail is notably used for mounting terminal blocks, power supplies, relays, control and distribution devices on walls and other flat surfaces, for applications inside enclosures…

IBOCO Din Rail has been treated with galvanic zinc plating and passivation (gal Zn 8c according to Din 50960) and his RoHS compliant. It is also certified EN60715 and EN50022.

Material: All our din rail is made of metal and has received special treatment (see above).

Our rail standard length is 2 meters (6' 6 3/4"), but 1 meter rail is also available (part number ends with 1 in IBOCO catalog).
Minimum thickness is 6 microns.

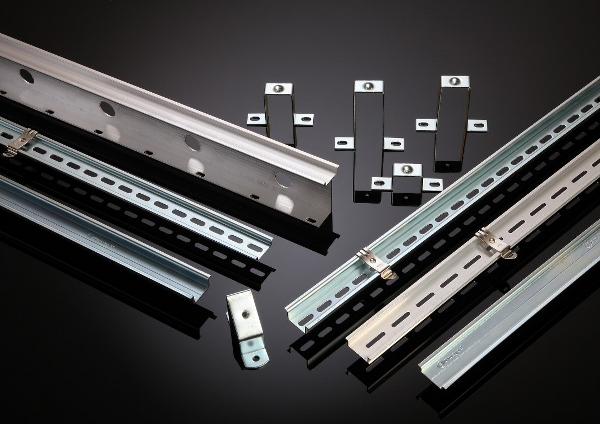

IBOCO rail is available either perforated or unperforated.

IBOCO also provides metal mounting rail without mounting holes, so that you can drill your own holes wherever you need them. The unperforated mounting rails (G1/Omega 3, 3A, 3B) have a center line in order to expedite the drilling of mounting holes.

Don’t forget to have a look at our Din Rail accessories line, which can save you a lot of time in your day to day work on rail applications.

If you need more information, please feel free to start chatting with us through our live chat. Plus, you can always contact your local representative or the IBOCO sales office in Edison, NJ for any additional question you might have on IBOCO Din Rail series.
